VOCs Sensor

  • VOCt Sensor의 특징
    각종 건축자재에서 발생하는 독성가스(포름알데 히드, 톨루엔, 벤젠), 유기
    용제, 환경호르몬 등을 고감도로 감지하는 센서
  • Sensor type
    산화물 반도체(Metal Oxide Semi-conductor)type
  • 감지대상
    가스포음알데 히드(HCHO), 톨루엔(C6H5CH3), 벤젠(C6H6), HC, 자일렌(크실렌, C6H4(CH3)2), Smoke
  • 응용
    공기청정기, 배기장치
  • Characteristics of the VOCs Sensor
    Sensor which detects toxic gas (formaldehyde, toluene, and benzene),
    deserted solvents and endocrine disruptors generated from various
    construction materials with high sensitivity
  • Sensor type
    Metal Oxide Semi-conductor type
  • Gas for detection
    Formaldehyde(HCHO), Toluene(C6H5CH3), Benzene(C6H6), HC, Xylene(C6H4(CH3)2), Smoke
  • Application
    Air Purifier, Damper
VOCt Sensor
GAS CO Sensor Specification(규격서)
한글 English
Model No GSBT11
Power DC 5V±1%, 360mW or less
Sensitivity Toluen(5ppm) : 0.5≤β≤ 0.7
Smoke(2,000ppm) : β≤0.6
Application Air Purifier, Damper

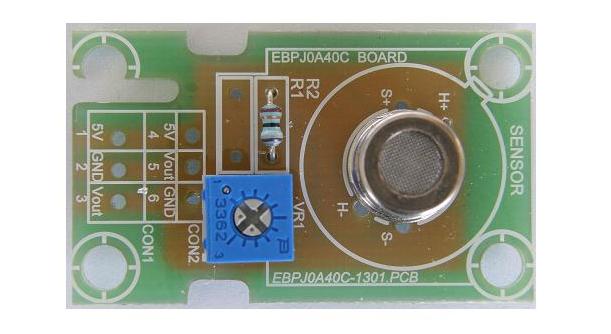

VOCs Sensor Module
GAS VOCs Sensor Module Specification(규격서)
한글 English
Model No GSBT11-P10X
Power DC 5V±1%, 390mW or less
Sensitivity Toluen(5ppm) : 0.5≤β≤ 0.7
Smoke(2,000ppm) : β≤0.6S
Application Air Purifier, Damper

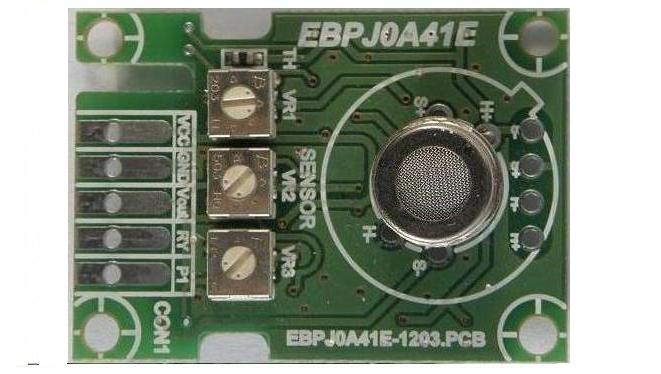

VOCs Sensor Module
GAS VOCs Sensor Module Specification(규격서)
한글 English
Model No GSBT11-P10X
Power DC 5V±1%, 390mW or less
Sensitivity Toluen(5ppm) : 0.5≤β≤ 0.7
Smoke(2,000ppm) : β≤0.6S
Application Air Purifier, Damper
